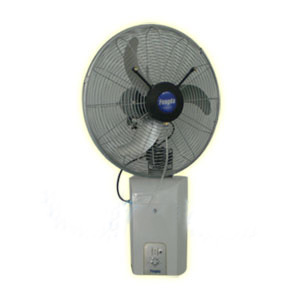

MODEL NO.     IDST10N P/N: 18WL   Wall mounting type   Connect to tap water directly 　OPTIONAL CONTROL MODE   Dual mode        (Both manual & remote control)      　CERTIFICATE RoHS ISO9001: 2008

Vol(VAC) Freq(Hz) Power(Watt) Speed(RPM) Airflow(m3/h) Noise(dB) Remark 220-240 50/60 90-130 1100-1450 2500-3900 48-60 3 speeds adjustable 100-120 50/60 90-130 1100-1450 2500-3900 48-60 　SPECIFICATION OF MIST SYSTEM PART Mist system: High pressure with 2 nozzles Water supply: Connect to tap water directly, it is necessary to connect a water filter before the water connects to water pump Mist drop size: < 10μm Available area: 15 m3 Available distance: 5m Temperatures drop: 4oC-8oC 　SPECIFICATION OF FAN PART Fan size:18”(450mm) wall mounting Material: metal (grill, housing, bracket, base) Height (mount on the wall): 2.00m to 2.50m Speed: 3 Speeds Adjustable Fan blade: Aluminum Tilt adjustable: 30 degrees up and dwon Oscillation:90 degrees automatically 　PACKING   　CONTAINER G.W.: 14.00KGS N.W.: 12.00KGS PACKAGE: 0.11CBM 1 CTNS/SET   20FT:250SETS 40HQ:590SETS 40FT:500SETS

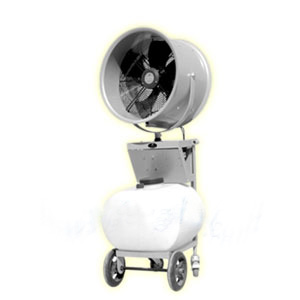

MODEL NO.     IDST10N P/N: RE   Stand type   Moveable design with wheels 　OPTIONAL CONTROL MODE   Dual control mode        (Both manual & remote control)   Manual control mode only     　CERTIFICATE RoHS ISO9001: 2008

Vol(VAC) Freq(Hz) Power(Watt) Speed(RPM) Airflow(m3/h) Noise(dB) Remark 220-240 50/60 180-350 900-1440 6000-9000 63-76 3 speeds adjustable 100-120 50/60 180-350 900-1440 6000-9000 63-76 　SPECIFICATION OF MIST SYSTEM PART Mist system:High pressure with 4 nozzles Water tank: 60 liters unbreakable plastic tank Continuance misting: 6hours from tank or Connect to tap water directly Mist drop size: < 10μm Available area: 50 m3 Available distance: 10m Temperatures drop: 4oC-8oC 　SPECIFICATION OF FAN PART Fan size:20”(500mm) Material: metal (grill, housing, bracket, base) Height: 1.50m,Mobile design with four wheels Fan motor protection: Water drop proof Speed: 3 Speeds Adjustable Fan blade: Metal Tilt adjustable: 30 degrees up and dwon Oscillation:90 degrees automatically 　PACKING   　CONTAINER G.W.: 55.00KGS N.W.: 52.00KGS PACKAGE: 0.40CBM 2 CTNS/SET   20FT:65SETS 40HQ:155SETS 40FT:130SETS
