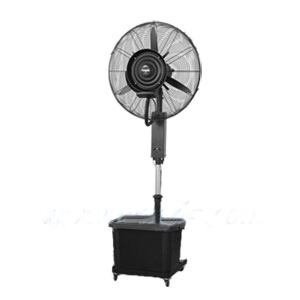

MODEL NO.     IDST10C P/N: VIP   Stand type   Moveable design with wheels 　OPTIONAL CONTROL MODE   Dual control mode        (Both manual & remote control)   　CERTIFICATE RoHS ISO9001: 2008

Vol(VAC) Freq(Hz) Power(Watt) Speed(RPM) Airflow(m3/h) Noise(dB) Remark 220-240 50/60 165-230 1080-1400 5000-7500 53-69 3 speeds adjustable 100-120 50/60 165-230 1080-1400 5000-7500 53-69 　SPECIFICATION OF MIST SYSTEM PART Mist system: Centrifugal mode Mist capacity: Adjustable by water valve Water tank: 40 liters unbreakable plastic tank Continuance misting: 8 hours Mist drop size: < 10μm Available area: 30 m3 Available distance: 8m Temperatures drop: 4oC-8oC 　SPECIFICATION OF FAN PART Fan size:26”(650mm) Stand Type Material: metal (grill, housing, bracket, base) Height: 2.00m, Mobile design with five wheels Fan motor protection: Water drop proof Speed: 3 Speeds Adjustable Fan blade: Aluminum Tilt adjustable: 30 degrees up and dwon Oscillation:90 degrees automatically 　PACKING   　CONTAINER G.W.: 35.50KGS N.W.: 32.50KGS PACKAGE: 0.28CBM 2 CTNS/SET   20FT:100SETS 40HQ:230SETS 40FT:200SETS

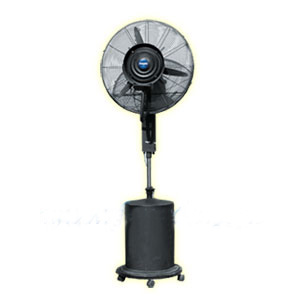

MODEL NO.     IDST10C P/N: 26ST   Stand type   Moveable design with wheels 　OPTIONAL CONTROL MODE   Manual control only          　CERTIFICATE RoHS ISO9001: 2008

Vol(VAC) Freq(Hz) Power(Watt) Speed(RPM) Airflow(m3/h) Noise(dB) Remark 220-240 50/60 165-230 1080-1400 5000-7500 53-69 3 speeds adjustable 100-120 50/60 165-230 1080-1400 5000-7500 53-69 　SPECIFICATION OF MIST SYSTEM PART Mist system: Centrifugal mode Mist capacity: Adjustable by water valve Water tank: 40 liters unbreakable plastic tank Continuance misting: 8 hours Mist drop size: < 10μm Available area: 30 m3 Available distance: 8m Temperatures drop: 4oC-8oC 　SPECIFICATION OF FAN PART Fan size:26”(650mm) Stand type Material: metal (grill, housing, bracket, base) Height: Adjustable from 1.70m to 2.00m Mobile design with four wheels Speed: 3 Speeds Adjustable Fan blade: Aluminum Tilt adjustable: 30 degrees up and dwon Oscillation:90 degrees automatically 　PACKING   　CONTAINER G.W.: 26.50KGS N.W.: 24.00KGS PACKAGE: 0.14CBM 2 CTNS/SET   20FT:200SETS 40HQ:470SETS 40FT:400SETS
