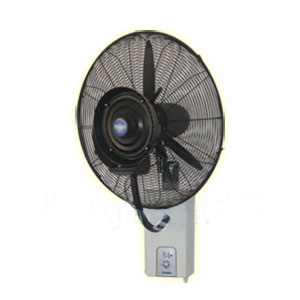

MODEL NO.     IDST10C P/N: 26WL   Wall mounting type   Connect to tap water directly 　OPTIONAL CONTROL MODE   Dual mode        (Both manual & remote control)   Manual control mode only     　CERTIFICATE RoHS ISO9001: 2008

Vol(VAC) Freq(Hz) Power(Watt) Speed(RPM) Airflow(m3/h) Noise(dB) Remark 220-240 50/60 165-230 1080-1400 5000-7500 53-69 3 speeds adjustable 100-120 50/60 165-230 1080-1400 5000-7500 53-69 　SPECIFICATION OF MIST SYSTEM PART Mist system: Centrifugal mode Mist capacity: Adjustable by water valve Water tank: 8 liters direct to connect tap water Continuance misting: continue Mist drop size: < 10μm Available area: 30 m3 Available distance: 8m Temperatures drop: 4oC-8oC 　SPECIFICATION OF FAN PART Fan size:26”(650mm) wall mounting Material: metal (grill, housing, bracket, base) Height (mount on the wall): 2.00m to 2.50m Fan motor protection: Water drop proof Speed: 3 Speeds Adjustable Fan blade: Aluminum Tilt adjustable: 30 degrees up and dwon Oscillation:90 degrees automatically 　PACKING   　CONTAINER G.W.: 22.50KGS N.W.: 20.50KGS PACKAGE: 0.12CBM 2 CTNS/SET   20FT:235SETS 40HQ:550SETS 40FT:470SETS

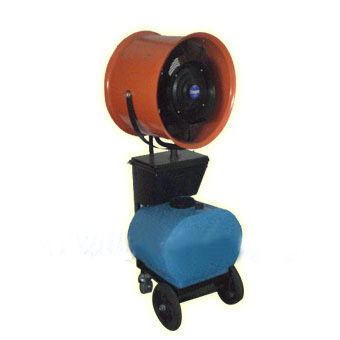

MODEL NO.     IDST10C P/N: RE   Stand type   Moveable design with wheels 　OPTIONAL CONTROL MODE   Dual control mode        (Both manual & remote control)   Manual control mode only     　CERTIFICATE RoHS ISO9001: 2008

Vol(VAC) Freq(Hz) Power(Watt) Speed(RPM) Airflow(m3/h) Noise(dB) Remark 220-240 50/60 180-350 900-1440 6000-9000 63-76 3 speeds adjustable 100-120 50/60 180-350 900-1440 6000-9000 63-76 　SPECIFICATION OF MIST SYSTEM PART Mist system: Centrifugal mode Mist capacity: Adjustable by water valve Water tank: 60 liters unbreakable plastic tank Continuance misting: 12 hours Mist drop size: < 10μm Available area: 50 m3 Available distance: 10m Temperatures drop: 4oC-8oC 　SPECIFICATION OF FAN PART Fan size:20”(500mm) Material: metal (grill, housing, bracket, base) Height: 1.50m, Mobile design with four wheels Fan motor protection: Water drop proof Speed: 3 Speeds Adjustable Fan blade: Metal Tilt adjustable: 30 degrees up and dwon Oscillation:90 degrees automatically 　PACKING   　CONTAINER G.W.: 55.00KGS N.W.: 52.00KGS PACKAGE: 0.40CBM 2 CTNS/SET   20FT:65SETS 40HQ:155SETS 40FT:130SETS
